TS 5000 R-ISM/S

TS 5000 SoftClose R-ISM/S * Overhead door closer with guide rail system for double leaf doors with latching action/ brake-to-stop function, integrated closing sequence control, electric hold-open device on the passive leaf and smoke switch control unit

Door closer system TS 5000 R-ISM/0 SoftClose / ECline with HM Overhead door closer with guide rail system for double leaf doors with closing sequence control, smoke switch and integrated back check, which brakes heavily applied doors.
  • System with two door closers TS 5000 and an R-ISM guide rail with hold-open unit on the passive leaf
  • Closing force with variable adjustment from EN2-6
  • Operating voltage 230 V AC
  • Can be used for right and left hand doors without conversion
  • The passive leaf is electrically held open in the guide rail, hold-open area 80°-130°.
  • Active leaf is held open by a hold-open magnet or door closer with free swing function
Show more
  • Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
  • Integrated smoke switch control unit, whose signal closes the door automatically in the event of a fire
  • Smoke switch with contamination indicator and adaption of the alarm threshold
  • Additional smoke detectors can be fitted
  • Latching action / smooth latching function can be adjusted from the front via valve
  • Closing speed can be individually adjusted
  • Integrated back check, slows down doors that are thrown open forcefully
  • Visual closing force display for easy control of the setting
  • All functions can be adjusted from the front
Contact us

Application Areas

  • Fire and smoke protection doors
  • Right and left double leaf single-action doors
  • Symmetrical and asymmetrical division of door possible
  • Single-action doors up to 2800 mm hinge clearance and 1400 mm leaf width
  • Door leaf installation hinge side
  • Hold-open systems with integrated hold-open device on passive leaf

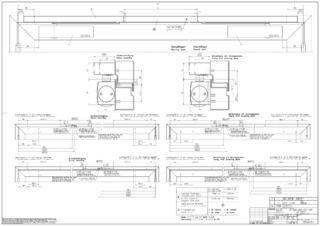

Technical data

TS 5000 SoftClose R-ISM/S
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm 1400 mm
Leaf width (max.) 1400 mm
Type of installation Door leaf installation hinge side
Opening angle (max.) 180 °
Input voltage 230 V AC
Frequency of supply voltage 50 Hz
Minimum hinge clearance 1500 mm
Minimum passive leaf width 400 mm
Suitability for fire protection doors Yes
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Latching action speed, adjustable Yes
Back check integrated Yes, hydraulically adjustable
Position of closing force adjustment Front
Visual closing force display Yes
Hold-open function Electrical
Hold-open device on the active leaf / passive leaf No / Yes
Hold-open range 80 ° - 130 °
Smoke switch integrated Yes
Closing sequence control integrated Yes
