Ident-No.
|
Designation
|
Description
|
Distance lock
|
Backset
|
DIN direction
|
Face plate dimensions
|
Supply voltage
|
Colour
|
| 161339 |

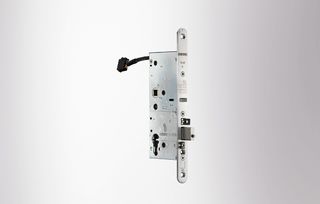

IQ lock EM DL |
For tubular frame doors with rectangular face plate 24 x 285 x 3 mm, fail-secure |
92 mm |
35 mm |
left (outward opening) |
24 x 285 x 3 mm |
24 V DC |
EV1 |
| 163825 |
IQ lock EM DL |
For solid leaf doors with round face plate 24 x 235 x 3 mm, fail-secure |
72 mm |
65 mm |
left (outward opening) |
24 x 235 x 3 mm |
24 V DC |
EV1 |
| 162627 |
IQ lock EM DL |
For tubular frame doors with rectangular face plate 28 x 270 x 3 mm, fail-secure |
92 mm |
35 mm |
left (outward opening) |
28 x 270 x 3 mm |
24 V DC |
EV1 |
| 139366 |
IQ lock EM DL |
for tubular-framed doors with rectangular face plate 24 x 270 x 3 mm, fail-secure |
92 mm |
35 mm |
right (outward opening) |
24 x 270 x 3 mm |
12 V DC |
EV1 |
| 157379 |
IQ lock EM DL |
For tubular frame doors with rectangular face plate 22 x 285 x 3 mm, fail-secure |
92 mm |
35 mm |
right (outward opening) |
22 x 285 x 3 mm |
24 V DC |
EV1 |
| 163827 |
IQ lock EM DL |
For solid leaf doors with round face plate 24 x 235 x 3 mm, fail-secure |
72 mm |
65 mm |
right (outward opening) |
24 x 235 x 3 mm |
24 V DC |
EV1 |
| 157380 |
IQ lock EM DL |
For tubular frame doors with rectangular face plate 22 x 285 x 3 mm, fail-secure |
92 mm |
35 mm |
left (outward opening) |
22 x 285 x 3 mm |
24 V DC |
EV1 |
| 161340 |
IQ lock EM DL |
For tubular frame doors with rectangular face plate 24 x 285 x 3 mm, fail-secure |
92 mm |
35 mm |
right (outward opening) |
24 x 285 x 3 mm |
24 V DC |
EV1 |
| 162626 |
IQ lock EM DL |
For tubular frame doors with rectangular face plate 28 x 270 x 3 mm, fail-secure |
92 mm |
35 mm |
right (outward opening) |
28 x 270 x 3 mm |
24 V DC |
EV1 |
| 163824 |
IQ lock EM DL |
For solid leaf doors with round face plate 24 x 235 x 3 mm, fail-secure |
72 mm |
80 mm |
left (outward opening) |
24 x 235 x 3 mm |
24 V DC |
EV1 |
| 163826 |
IQ lock EM DL |
For solid leaf doors with round face plate 24 x 235 x 3 mm, fail-secure |
72 mm |
80 mm |
right (outward opening) |
24 x 235 x 3 mm |
24 V DC |
EV1 |
| 161357 |
IQ lock EM DL |
For tubular frame doors with rectangular face plate 24 x 285 x 3 mm, fail-secure |
92 mm |
40 mm |
left (outward opening) |
24 x 285 x 3 mm |
24 V DC |
EV1 |
| 133857 |
IQ lock EM DL |
for tubular-framed doors with rectangular face plate 24 x 270 x 3 mm, fail-secure |
92 mm |
35 mm |
left (outward opening) |
24 x 270 x 3 mm |
24 V DC |
EV1 |
| 162630 |
IQ lock EM DL |
For tubular frame doors with rectangular face plate 28 x 270 x 3 mm, fail-secure |
92 mm |
45 mm |
right (outward opening) |
28 x 270 x 3 mm |
24 V DC |
EV1 |
| 133859 |
IQ lock EM DL |
for tubular-framed doors with rectangular face plate 24 x 270 x 3 mm, fail-secure |
92 mm |
45 mm |
left (outward opening) |
24 x 270 x 3 mm |
24 V DC |
EV1 |
| 139367 |
IQ lock EM DL |
for tubular-framed doors with rectangular face plate 24 x 270 x 3 mm, fail-secure |
92 mm |
35 mm |
left (outward opening) |
24 x 270 x 3 mm |
12 V DC |
EV1 |
| 161359 |
IQ lock EM DL |
For tubular frame doors with rectangular face plate 24 x 285 x 3 mm, fail-secure |
92 mm |
40 mm |
right (outward opening) |
24 x 285 x 3 mm |
24 V DC |
EV1 |
| 139369 |
IQ lock EM DL |
For solid leaf doors with round face plate 20 x 235 x 3 mm, fail-secure |
72 mm |
65 mm |
left (outward opening) |
20 x 235 x 3 mm |
12 V DC |
EV1 |
| 139368 |
IQ lock EM DL |
For solid leaf doors with round face plate 20 x 235 x 3 mm, fail-secure |
72 mm |
65 mm |
right (outward opening) |
20 x 235 x 3 mm |
12 V DC |
EV1 |
| 161358 |
IQ lock EM DL |
For tubular frame doors with rectangular face plate 24 x 285 x 3 mm, fail-secure |
92 mm |
45 mm |
left (outward opening) |
24 x 285 x 3 mm |
24 V DC |
EV1 |
| 133864 |
IQ lock EM DL |
for tubular-framed doors with rectangular face plate 24 x 270 x 3 mm, fail-secure |
92 mm |
35 mm |
right (outward opening) |
24 x 270 x 3 mm |
24 V DC |
EV1 |
