Lock 2-leaf

IQ lock AUT System solution for full panic doors with automated door leaves on both sides

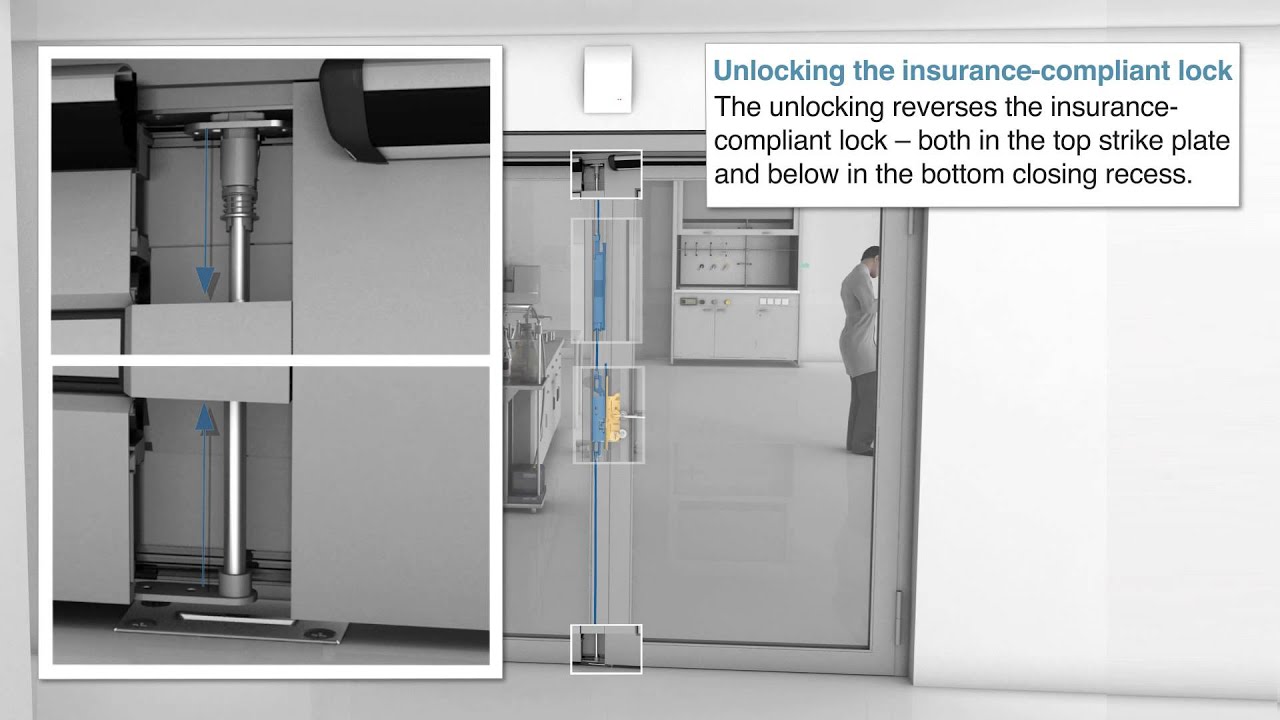

Motor-driven unlocking of door on active and passive leaf in less than three seconds
Mechanical self-locking brings the bolt into its locked position on the active and passive leaf
Unlocking of active leaf by activating passive leaf (full panic function)
Divided cross latch prevents the bolt from locking even under preload
Electric sequential control on the active leaf ensures that the door will be locked safely
Different modes of operation available for every situation

Integrated feedback contacts on active and passive leaf enable complete door monitoring
Choice of sabotage monitoring or cylinder contact on active leaf
Locking in accordance with insurance requirements ensured

System solution for full panic doors with automated door leaves on both sides

Double leaf emergency exit and panic doors (left hand and right hand door)
Doors along escape and rescue routes
Fire and smoke protection doors (with MST 210 motor lock control, IO 420 interface module and on-site emergency power supply)
Smoke and heat extraction system fresh air doors
Access control systems
Can be combined with GEZE automatic swing door systems

Lock technology – the passive leaf has been motorised in double leaf doors, offering accessibility for everyone.

	IQ lock AUT
DIN direction	left / right
Service temperature	-10 - 50 °C
Panic function / mechanical self-locking	Yes
Feedback contacts for lock states	Yes
Activation	External contact
Power consumption	60 mA at 24 V; max. 1.5 A at 24 V, N/A
Connection cable length	10 m
