Fan light and connector patches

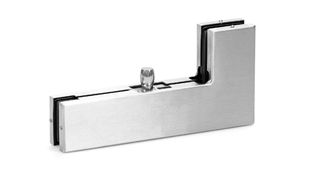

PT 40 * Glass Fitting angle fanlight fitting with pivot bearing bolts (ø 15 mm)
- Elegant cover caps made of polished or brushed stainless steel
- Problem-free adjustment to glass thicknesses of 10 – 12 mm
Application Areas
- For static toughened glass assemblies
- For glass thicknesses 10 and 12 mm
- For internal and external systems
Technical data
| PT 40 | |
| Dimensions | 217 x 32 x 105 mm |
| Width | 32 mm |
| Length | 217 mm |
| Height | 105 mm |
| Glass thickness (min.) | 10 mm |
| Glass thickness (max.) | 12 mm |
| Type of installation | Glass installation |

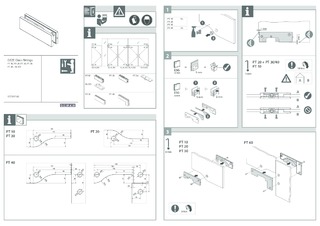

Downloads
GEZE Glass Fitting PT 40
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
