Slimdrive SLT-CO48 * Automatic linear sliding door system with low overall height and clear design line
- Very quiet running, low-wear direct current drive with a height of only 7 cm
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Independent error recognition and recording
- Freely configurable inputs and outputs for different functions
- Integrated battery for emergency opening and closing in the event of a power failure
- Various mechanical and electrical locks are optionally available
Application Areas
- Double and four-leaf sliding door systems
- In confined spaces with small clear opening width or little space next to the door opening
- Interior and exterior doors with high access frequency
- Opening widths of 1000 to 3600 mm possible
- Door leaf weights up to 80 kg per leaf
Installation situations in reference objects and videos
Sliding door solutions from GEZE, product video
ECdrive T2, Slimdrive and Powerdrive: Tailored, efficient and open to the demands of tomorrow.

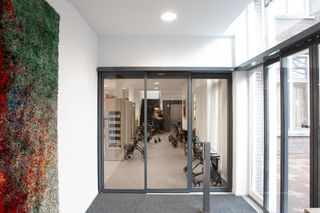

Automatic sliding door drive Slimdrive SLT, installed at the care homes of St. Elisabeth, Rosendaal
Automatic telescopic sliding door system for use in narrowest glass façades with two parallel surface mounted tracks, the door leaves lead and achieve high opening widths. © Erwin Kamphuis / GEZE GmbH

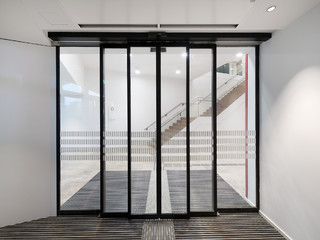

Slimdrive SLT-FR automatic sliding door drive, installed at Vienna University of Economics
Automatic telescopic sliding door system for escape and rescue routes for use in narrow glass façades © Sigrid Rauchdobler / GEZE GmbH

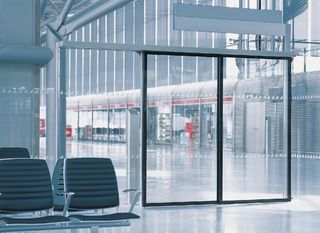

Automatic sliding door drive Slimdrive SLT at Cologne-Bonn airport
Automatic telescopic sliding door system for use in narrowest glass façades with two parallel surface mounted tracks, the door leaves lead and achieve high opening widths. © Martin Jakob / GEZE GmbH

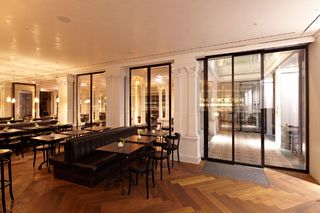

Automatic sliding door drive Slimdrive SLT with IGG and IGG fixed panels at Café Luitpold in Munich
Automatic telescopic sliding door system for use in narrowest glass façades with two parallel surface mounted tracks, the door leaves lead and achieve high opening widths. © Robert Sprang / GEZE GmbH

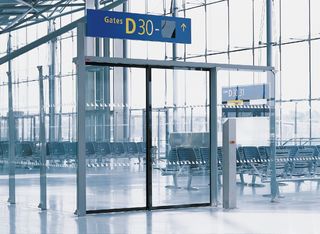

Automatic sliding door drive Slimdrive SLT at Cologne-Bonn airport
Automatic telescopic sliding door system for use in narrowest glass façades with two parallel surface mounted tracks, the door leaves lead and achieve high opening widths. © Martin Jakob / GEZE GmbH
Automatic sliding door drive Slimdrive SLT at Cologne-Bonn airport
Automatic telescopic sliding door system for use in narrowest glass façades with two parallel surface mounted tracks, the door leaves lead and achieve high opening widths. © Martin Jakob / GEZE GmbH
Automatic sliding door drive Slimdrive SLT at Cologne-Bonn airport
Automatic telescopic sliding door system for use in narrowest glass façades with two parallel surface mounted tracks, the door leaves lead and achieve high opening widths. © GEZE GmbH
Technical data
| Slimdrive SLT-CO48 | |
| For 2-leaf door systems | Yes |
| For 4-leaf door systems | Yes |
| Fine-framed insulating glass | Yes |
| Height | 70 mm |
| Depth | 247 mm |
| Leaf weight (max.) 2-leaf | 80 kg |
| Leaf weight (max.) 4-leaf | 70 kg |
| Opening width 2-leaf | 1000 mm - 3000 mm |
| Opening width 4-leaf | 1600 mm - 3600 mm |
| Service temperature | -15 - 50 °C |
| IP rating | IP20 |
| Disconnection from mains | Main switch in the drive |
| Standard conformity | DIN EN ISO 13849: Performance Level D. EN 16005 |
Downloads

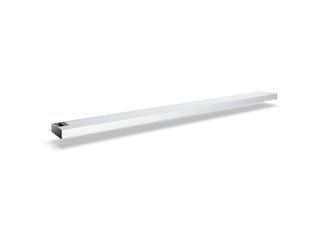

Product shot
Installation situation
Product data sheet
User manual
Installation instructions
Wiring diagram
Supplementary sheet

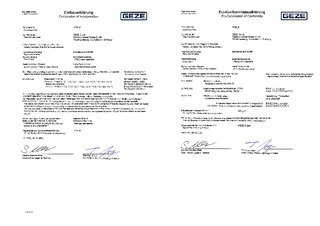

Declaration of conformity
Safety analysis
Environmental declaration

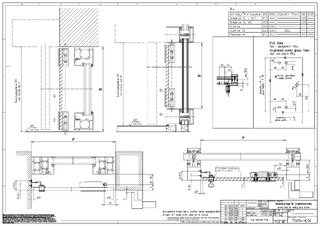

Installation drawing
Errors/Measures
Variants & Accessories
