Infrared movement detector

AIR 20 * Active infrared light switch for monitoring the door handle of automatic swing doors

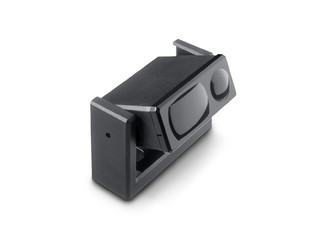

AIR 20 active infrared light sensor
  • Active infrared light sensor
  • Scanning range variably adjustable from 1.2 - 2.2 m
Contact us

Active infrared light switch for monitoring the door handle of automatic swing doors

Application Areas

  • Monitoring of the door handle for activating automatic swing doors
  • Presence detectors for persons or objects in small areas
  • Occupied checks in person and security interlocking door systems

Technical data

AIR 20
Dimensions 72 x 66 x 49 mm
Technology Active infrared beams
Operating current 50 mA
IP rating IP52
Cable connection type Plug-in screw terminal
Connection cable length 5000 mm
Scanning range adjustment 1.2 - 2.2 m
Installation height (min.) 1200 mm
Installation height (max.) 2200 mm
Light beam cross-section 60 x 60 mm
Service temperature -20 - 60 °C
Humidity < 90 % relative, non-condensing
Standard conformity EN 60947-5-2
