Radar movement detectors
GC 307+ Non-contact proximity switch for activating automatic doors
- Doors can be opened without a requirement for tactile perception
- External input for LED colour change
- Detects persons and objects in a detection area of 10 - 60 cm
- Scanning ranges adjustable to make environmentally and user-specific adjustments
- Hand-height mounting ensures convenient, barrier-free access
- Can also be installed behind tiles or glass
- Adjustable via DIP switches and remote control: acoustic feedback, LED colours, LED animations, pulse/toggle mode
Non-contact proximity switch for activating automatic doors
Application Areas
- Non-contact activation of automatic swing, sliding, folding, revolving and curved sliding doors
- Interior and external doors
- Rooms with high hygiene demands

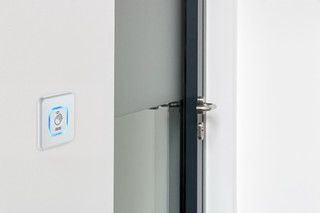

Installation situations in reference objects and videos

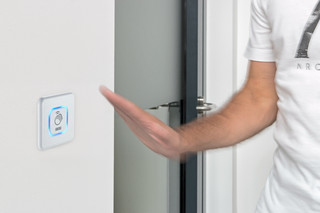

High level of hygiene & barrier-free access, via GC 307+
Touchless sensors are used whenever manual activation is required, but touchless function is desired, for instance for hygienic reasons. © GEZE GmbH

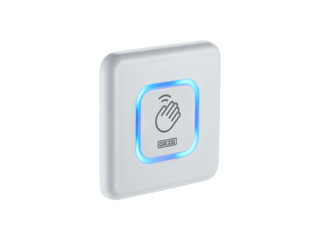

GC 307+ proximity switch
With the GC 307+, GEZE offers a radar sensor for the efficient and hygienic activation of automatic doors. Open the door comfortably via a touchless switch at hand level. © GEZE GmbH
Technical data
| GC 307+ | |
| Technology | Electromagnetic radar waves |
| Operating voltage | 12-24 V DC +30% /-10% / 12-24 V AC ± 10% |
| Output | Electrical relay |
| IP rating | IP65 |
| Cable connection type | Screw terminal |
| Adjustability | via DIP switch, with remote control |
| Installation height | at hand level |
| Transmission frequency | 24.15 GHz |
| Service temperature | -20 - 55 °C |
| Standard conformity | RED 2014/53/EU, RoHS 2011/65/EU |
