Guide rail 1-leaf

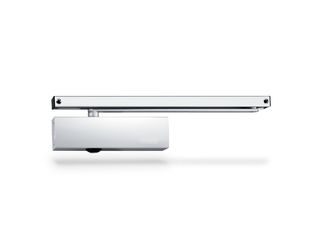

TS wood complete package * Overhead door closer with guide rail for single leaf doors up to 950 mm leaf width
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
- All functions can be set from the front (except for closing force)
- Door closer, can be used for right and left hand doors
- Door closer, can be used for leaf and transom installation
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors up to 950 mm leaf width
- Door leaf and transom installation on the hinge and opposite hinge side
Technical data
| TS wood complete package | |
| Closing force in accordance with EN 1154 | EN 3 |
| Leaf width (max.) | 950 mm |
| Opening angle (max.) | 180 ° |
| Identical design for DIN left and DIN right | Yes |
| Standard conformity | EN 1154:1996/A1:2002/AC:2006 |
| Suitability for fire protection doors | Yes |
| Length | 226 mm |
| Width | 46 mm |
| Height | 60 mm |
| Closing force adjustable | No |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via valve |
| Back check integrated | No |
| Safety valve againts overload | Yes |
| Thermo-control valves | Yes |
| Hold-open function | Optional |
Downloads
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
