TS 1500 * Overhead door closer with link arm for single leaf doors of up to 1100 mm leaf width with adjustable closing speed
- Variable closing force of EN 3 or EN 4 by reversing the bearing block
- Can be used for right and left hand doors without conversion
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
Application Areas
- Right and left single-action doors for interior use
- Single-action doors up to 1100 mm leaf width
- Door leaf installation hinge side and transom installation opposite hinge side
Installation situations in reference objects and videos
Door closer TS 1500
Overhead door closer TS 1500, with hold-open arm, hinge side, transom installation. Installed at Sports Hall in Zadar, Croatia. © Robert Les / GEZE GmbH
Door closer TS 1500
Overhead door closer TS 1500, with hold-open arm, hinge side, transom installation. Installed at Sports Hall in Zadar, Croatia. © Robert Les / GEZE GmbH
Technical data
| TS 1500 | |
| Closing force in accordance with EN 1154 | EN 3/4 |
| Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm | 1100 mm |
| Leaf width (max.) | 1100 mm |
| Type of installation | Door leaf installation hinge side, Transom installation opposite hinge side |
| Opening angle (max.) | 180 ° |
| Closing force adjustable | Yes, via installation |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via link arm |
Downloads
Product shot
Installation situation
Product data sheet
Installation instructions
Certificate
Supplementary sheet
Tender texts
Flyer/folder
Product brochure
Declarations of performance
Environmental declaration

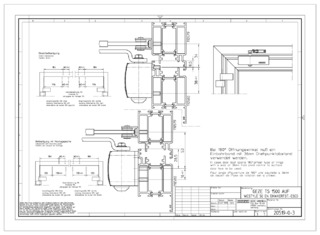

Installation drawing
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
