Floor spring 1-leaf

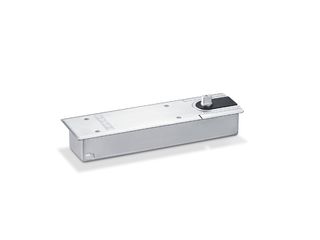

TS 550 NV FP * Floor spring for single leaf fire protection doors up to 1400 mm leaf width with adjustable closing force EN 3-6 and without hold-open device
- Floor-mounted door closer with adjustable closing force of EN3-6
- Can be used for right and left hand doors without conversion
- Delayed closing adjustable to adapt the closing force of the door up to approx 80° opening angle
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
- Integrated back check, slows down doors that are thrown open forcefully
Application Areas
- Fire and smoke protection doors
- Right and left double-action doors
- Double-action doors up to a leaf width of 1400 mm
- For frequently used and heavy doors up to 300 kg
- Floor mounting, concealed
Technical data
| TS 550 NV FP | |
| Suitability for fire protection doors | Yes |
| Use on single-/double-action door | Double-action door |
| Opening angle (max.) | 170 ° |
| Closing force in accordance with EN 1154 | EN 3 - 6 |
| Leaf weight (max.) | 300 kg |
| Closing force adjustable | Yes, stepless |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via valve |
| Back check integrated | Mechanically fixed |
| Position of closing force adjustment | Top |
