Boxer ISM

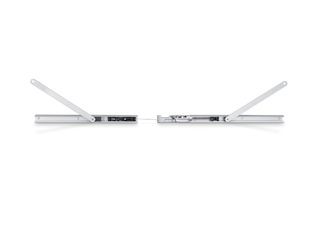

ISM guide rail Boxern * With closing sequence control and lever

ISM/guide rail, 2-leaf / E-ISM guide rail 1-leaf Boxer
  • Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
  • Vandalism protection through flexible Bowden cable
  • Flexible repositioning of the Bowden cable release mechanism in the frame, e.g. with passive leaf lockings
  • With screwed sliding block
  • Minimal installation effort due to low number of individual parts and quick setting
Contact us

With closing sequence control and lever

Application Areas

  • Double leaf doors with closing sequence control
  • Integrated installation
  • Right and left single-action doors
  • Symmetrical and asymmetrical division of door possible
  • For passive leaves from 540 mm
  • Minimum hinge clearance 1300 mm, minimum width of passive leaf 540 mm

Technical data

ISM guide rail Boxern
Minimum hinge clearance 1300 mm
Minimum passive leaf width 540 mm
Standard conformity EN 1158
Width 31 mm
Height 30 mm
Hold-open function Optional
Closing sequence control integrated Yes
Flexible opening restrictor Yes
