IQ box KNX * Interface module for connecting the Slimchain, Powerchain and E 250 NT window drives in the KNX building bus
- Activation and feedback of the window drives via the KNX building bus
- One IQ box KNX per window connects up to four window drives and two locking drives
- All drives from the GEZE IQ windowdrive series can be combined and integrated according to the planning status
- Greater efficiency for building monitoring thanks to reliable status reports
- Integrated push button interface to connect components such as push buttons and sensors
- Status report from every automated window possible
- Easy to retrofit, can be extended as required
Application Areas
- Natural ventilation in façades and the roof area
- Direct integration of the Slimchain, Powerchain and E 250 NT window drives in KNX building systems
- For top hat rail or flush-mounted installation
Installation situations in reference objects and videos
GEZE Slimchain and IQ box KNX
An automated and networked system of windows and doors ensures you always enjoy a pleasant indoor climate with controlled natural ventilation. © GEZE GmbH
Technical data
| IQ box KNX | |
| Type of installation | Surface-mounted, Flush-mounted installation |
| Max. cable length to push buttons | 30 m |
| Max. cable length to window | 50 m |
| Voltage at operation | 24 V ± 25 % |
| Current consumption | 0.02 A |
| Cable dimensions (max.) | 1.5 mm² |
| Service temperature | -5 - 70 °C |
| IP rating | IP20 |
| protection rating | III |
| KNX movement commands | Open/close, step/stop, target position in %, speed in %, block |
| KNX status reports | Position in %, opened, closed, not closed,-opening, closing, intermediate position |
| Ventilation | Timed ventilation, gap ventilation, wind alarm, rain alarm |
Downloads

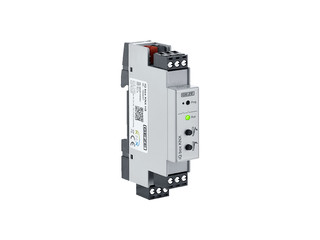

Product shot
IQ box KNX
LABELLING OBLIGATION:
© GEZE GmbH

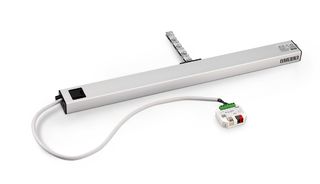

GEZE Slimchain and IQ box KNX
LABELLING OBLIGATION:
© GEZE GmbH
Product data sheet
User manual
Wiring diagram
Certificate
Declaration of conformity
Tender texts
Product brochure
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
