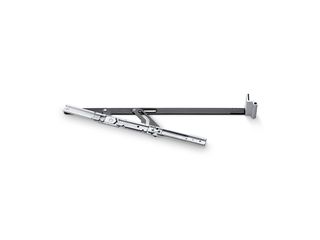

F 1200 * Cranked turn-and-tilt hardware system for manual ventilation of large and heavy windows

F 1200 in vertical operation
  • Achieves the full opening width of 180 mm for all leaf heights
  • Bottom opening width with variable adjustment
  • Functional safety due to weight-independent crank handle activation with control display
  • Suitable for leaf weights up to 200 kg
  • Functional safety from friction coupling, to avoid overloading
  • Optional extendible fitting system with aid of vertical and horizontal central locking systems in accordance with leaf size
Show more
  • Safe locking for almost any number of bolt points
Contact us

Application Areas

  • Convenient and daily ventilation for rooms
  • Ventilation with variable adjustment – from gap ventilation to the tilted end position
  • Turn and tilt windows
  • Installation on aluminium windows
  • Leaf and frame installation

Technical data

F 1200
Opening width (max.) 180 mm
Leaf width (min.) 750 mm
Leaf height (min.) 750 mm
Leaf weight (max.) 200 kg
Fitting stroke 81 mm
