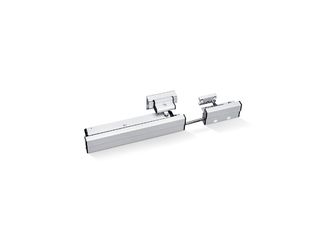

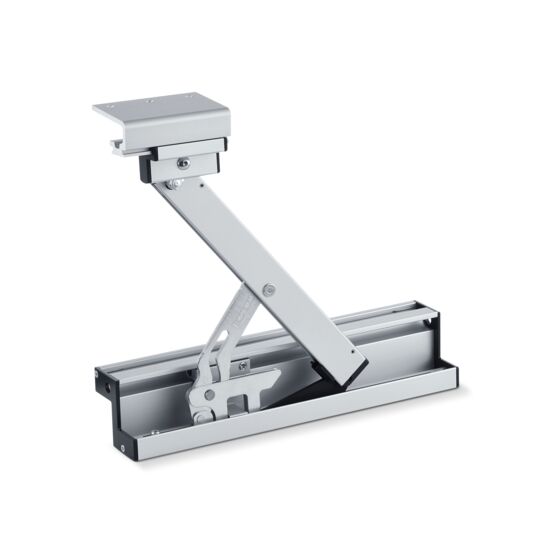

OL 90 N top-hung outward-opening * Fanlight opener for ourward-opening top-hung leaves with an opening width of 170 mm
- Achieves the full opening width of 170 mm for all leaf heights
- The opening width can be adjusted
- Little space necessary thanks to flat design of the scissors

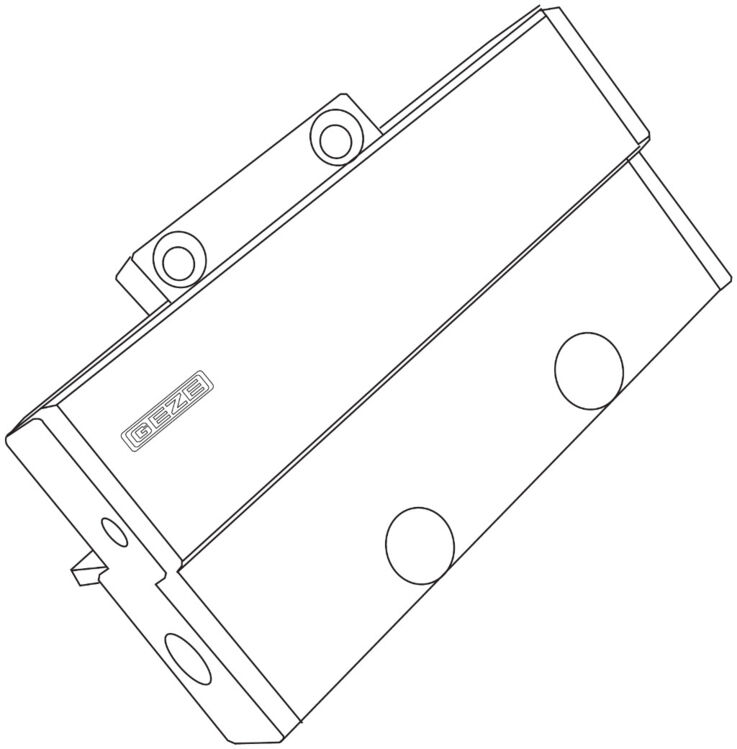

- Integrated leaf locking mechanism in the scissors ensures secure locking
- Special locking mechanism increases safety and air-tightness
- Simple scissor re-setting or unhooking using the release button enables window cleaning from the inside and outside
- Completely pre-mounted assembly groups facilitate installation
- Leaf bracket fits all overlap heights and materials
Application Areas
- Convenient daily ventilation for rooms and staircases
- Outward-opening top-hung windows with a reveal depth of 0-60 mm
- Automation by E 212 electric linear drive
- Installation on wooden, plastic or aluminium windows
- Leaf installation
Technical data
| OL 90 N top-hung outward-opening | |
| Length | 274 mm |
| Depth | 54 mm |
| Height | 61 mm |
| Opening width (max.) | 170 mm |
| Leaf width (min.) | 400 mm |
| Leaf height (min.) | 370 mm |
| Leaf weight (max.) | 80 kg |
| Fitting stroke | 54 mm |
| Adjustable opening width (stroke reduction) | Dependent |
| Leaf locking mechanism integrated in the scissors | Yes |
| Scissor unhooking by release button | Yes |
| Burglar-resistant locking mechanism (SKG-certified) | Yes |

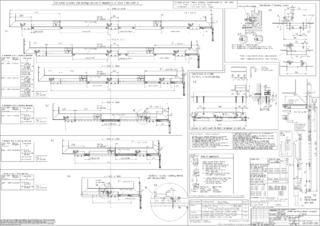

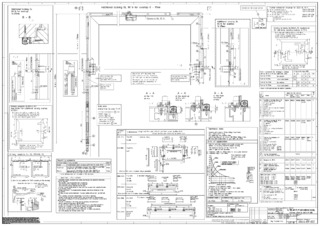

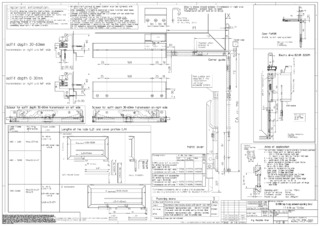

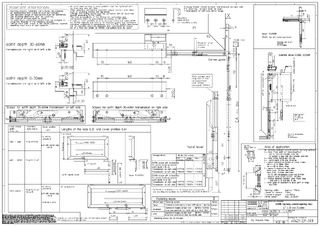

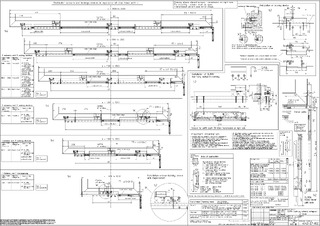

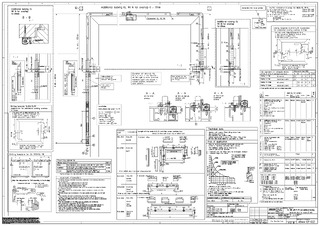

Downloads
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
