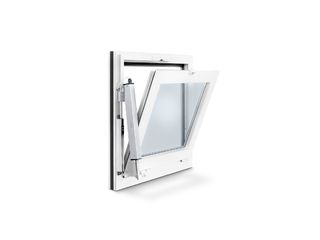

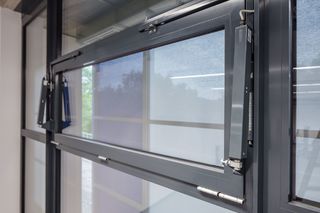

RWA 100 NT * Opening and locking system for inward opening bottom-hung, top-hung and side-hung leaves

RWA 100 NT / OL 350 EN
  • System solution with profile-mounted E 250 NT spindle drive and a console set with locking device
  • Mechanical locking at the main closing edge by the spindle drive
  • Large opening width with short spindle stroke in less than 60 seconds
  • Synchro operation possible with two drives for wide window leaves
  • IQ windowdrive - intelligent drive control
  • Tested as a natural smoke and heat exhaust ventilation device (SHEV) in accordance with EN 12101-2
Contact us

Opening and locking system for inward opening bottom-hung, top-hung and side-hung leaves

Application Areas

  • Opening and locking of inward-opening windows with bottom-hung, top-hung and side-hung leaves
  • Natural ventilation, smoke and heat extraction system, natural smoke and heat extraction device (SHEV)
  • Can be used in the exhaust air and air intake
  • Installation on wooden, PVC or metal windows

Technical data

RWA 100 NT
Space needed (min.) Locking side: 32 mm, motor side: 48 mm
Permissible dimensions of primary closing edge Solo for timber and aluminium frames 360 - 1200 mm
Permissible dimensions of primary closing edge Solo for plastic frames 360 - 800 mm
Permissible dimensions of primary closing edge Syncro for timber and aluminium frames 800 - 2400 mm
Permissible dimensions of primary closing edge Syncro for plastic frames 800 - 1.600 mm
Leaf heights for Solo and Syncro 520 - 1700 mm
Available stroke length 100 mm, 150 mm, 200 mm, 300 mm
Force of pressure (max.) 750 N
Compressive force 750 N
Tensile force 750 N
Panel weight (max.) 30 kg/m²
Voltage at operation 24 V (+30 % to -20 %)
Operating voltage 24 V DC
Current consumption 1 A
Power consumption Ventilation (24 V): 0.9 A, RWA (18 V): 1.0 A
Power consumption 22 W
Residual ripple 20 %
Duty rating 30 %
Connection cable length 2 m
Min. core cross section 0.75 mm²
Number of cables 4 cores
Service temperature -5 - 75 °C
IP rating IP65
protection rating III
Locking and additional angle bracket Yes
End position cut-off extended Internal path sensor
End position cut-off retracted Internal path sensor
Overload cut-off Yes
SHEV tested Yes
KNX ability Yes
Bottom-hung window INWARD-opening frame installation Yes
Side-hung window INWARD-opening frame installation Yes
Top-hung window INWARD-opening frame installation Yes
