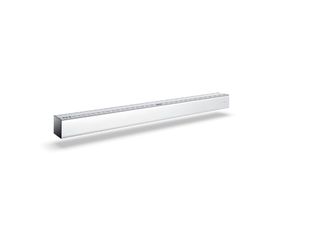

Powerdrive PL CO48 * Automatic linear sliding door system for large and heavy doors of up to 160 kg leaf weight
- Very powerful drive for large, heavy leaves and wide opening widths
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Independent error recognition and recording
- Adjustment options for all door movement parameters
- Freely configurable inputs and outputs for different functions
- Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
Application Areas
- Interior and exterior doors with high access frequency
- Opening widths from 700 to 3000 mm possible
- Door leaf weights of up to 160 kg per leaf
- Suitable profile systems are fine-framed profile systems with ISO and mono glass, toughened safety glass clamping profile, on-site frame and wooden leaves

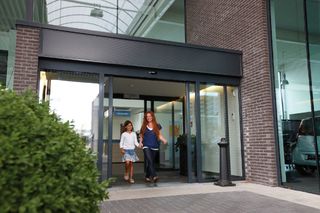

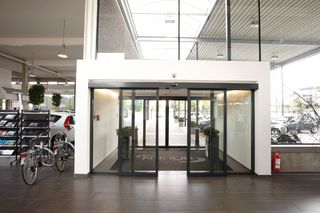

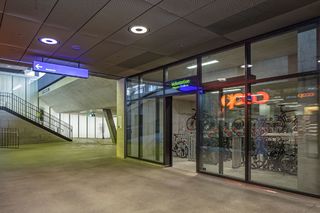

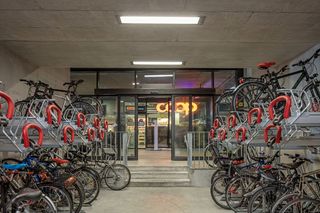

Installation situations in reference objects and videos
Technical data
Powerdrive PL CO48 | |
For 1-leaf door systems | Yes |
For 2-leaf door systems | Yes |
Fine-framed insulating glass | Yes |
MONO glass fine-framed | Yes |
ESG clamping profile | Yes |
Framed leaf (on site) | Yes |
Wooden leaf (on site) | Yes |
Height | 150 mm |
Depth | 185 mm |
Leaf weight (max.) 1-leaf | 160 kg |
Leaf weight (max.) 2-leaf | 160 kg |
Opening width 1-leaf | 700 mm - 3000 mm |
Opening width 2-leaf | 800 mm - 3000 mm |
Service temperature | -15 - 50 °C |
IP rating | IP20 |
Disconnection from mains | Main switch in the drive |
Standard conformity | DIN EN ISO 13849: Performance Level D, EN 16005 |
Downloads
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © Lothar Wels / GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © Lorenz Frey / GEZE GmbH
LABELLING OBLIGATION: © Lorenz Frey / GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
