Hygienic Doors

ECdrive H * Automatic linear sliding door system for areas with increased hygiene requirements

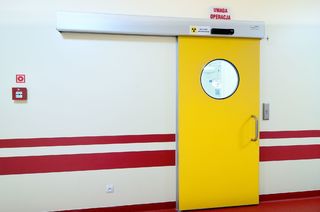

Automatic sliding door ECdrive H especially for hospitals installed in the Asklepios Clinic in Rzeszów (Poland) Automatic linear sliding door system for areas with increased hygiene demands
  • Consists of a drive kit and aluminium profiles
  • Offers numerous options for project-specific collaboration with installation companies
  • Special track reduces dirt residue and simplifies hygienic cleaning
  • Optimised opening widths for hospital operation (nurse opening, cleaning opening, bed opening)
  • Can be networked, and integrated into the building automation via open standard (BACnet)
  • Independent error recognition and recording
Show more
  • Freely configurable inputs and outputs for different functions
  • Integrated battery for emergency opening and closing in the event of a power failure
  • Self-cleaning roller carriage reduces maintenance effort and costs
  • Various mechanical and electrical locks are optionally available
Contact us

Application Areas

  • Single and double leaf sliding door systems
  • Interior doors with increased hygiene requirements, such as operating rooms, laboratories, clean rooms
  • Opening widths from 700 to 2200 mm possible
  • Door leaf weight of up to 120 kg per leaf
  • Fine-framed profile system with ISO glass is the suitable profile system

Technical data

ECdrive H
For 1-leaf door systems Yes
For 2-leaf door systems Yes
Fine-framed insulating glass Yes
Height 200 mm
Depth 105 mm
Leaf weight (max.) 1-leaf 120 kg
Leaf weight (max.) 2-leaf 120 kg
Opening width 1-leaf 700 mm - 2200 mm
Opening width 2-leaf 900 mm - 2200 mm
Service temperature -15 - 50 °C
IP rating IP20
Disconnection from mains Main switch in the drive
Standard conformity DIN 18650, DIN EN ISO 13849: Performance Level D, EN 16005
