Slimdrive SCR RC2 * The perfect combination of design and certified safety

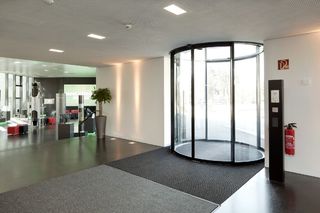

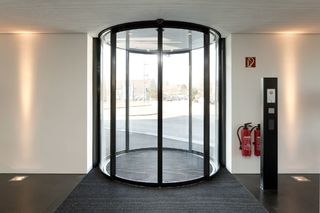

Slimdrive SCR RC2 The glass façades meet with the highest design demands for representative entrances to buildings with great light incidence. Certified burglar resistance according to resistance class RC 2. The interior and exterior doors have the highest safety demands and an escape route function with redundant drive design.
  • Certified burglar resistance according to resistance class RC2
  • The RC2 function is only available in the "Night" mode of operation, in which the door is locked with rod locking
  • Equipped with a rod locking and reinforced profile components
  • Very quiet running, low-wear direct current drive with a height of only 7 cm
  • The system consists of two drives that are controlled separately from one another.
  • 40 % more opening width than with linear sliding door drives
Show more
  • Wide range of drive variants and equipment options possible
  • Can be networked via CAN bus and integrated into building technology management systems
  • Independent error recognition and recording
  • Freely configurable inputs and outputs for different functions
  • Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
  • Self-cleaning roller carriage reduces maintenance effort and costs
Contact us

The perfect combination of design and certified safety

Application Areas

  • 2- and 4-leaf door systems
  • Interior and exterior doors with maximum safety requirements

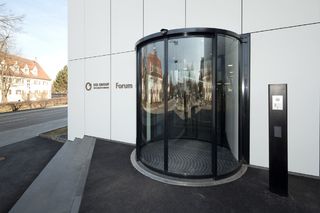

  • Representative building entrances with large incidence of light
  • Façades with slim post-rail constructions
  • Glass façades with the highest design standards
  • Opening widths from 800 to 2500 mm possible
  • Door leaf weights up to maximally 120 kg

Technical data

Slimdrive SCR RC2
Barrier-free Yes
Adjustable opening speed (ventilation) Yes
Adjustable closing speed Yes
Opening width 2-leaf 800 mm - 2500 mm
Clear passage height 3000 mm
Canopy height (min.) 75 mm
Leaf weight (max.) 1-leaf 120 kg
Leaf weight (max.) 2-leaf 120 kg
Radius (min.) 1300 mm
Moving leaf version 10 mm LSG, Special glass on request
Side elements version 10 mm LSG, Special glass on request
Surface Powder-coated according to RAL, Anodised light alloy E6/EV1, colour anodised according to sample, special coating on request
Version of roof structure optical sheet metal covering, waterproof roof with waterspout
Illumination with roof variant
Floor covering Entrance mat, Floor mat according to customer wishes
Hot-air curtain system possible, depends on the ceiling construction
Special functions on request Yes
Operation Programme switch DPS, Programme switch TPS, Control via building management system
Standard conformity DIN 18650, EN 16005
