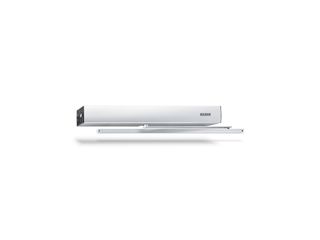

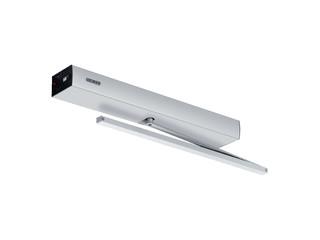

Slimdrive EMD-F * Electromechanical swing door drive for single leaf fire and smoke protection doors
- Closing force with variable adjustment EN3-6
- Opening and closing speed can be individually adjusted
- Mechanical latching action when operated without current, and electrical latching action in regular operation, which accelerates the door shortly before the closed position
- Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety requirements
- Servo function for motorized support when manually opening the door
- Vestibule function controls the opening and closing of two consecutive doors (interlocking door system)
- Obstacle detection detects obstacles through contact and stops the opening or closing process
- Automatic reversing detects an obstacle and returns to the opening position
- Push & Go function triggers the automatic drive components following light manual pressure on the door leaf
- Drive can be used with roller guide rail or link arm
Electromechanical swing door drive for single leaf fire and smoke protection doors
Application Areas
- Fire and smoke protection doors
- Right and left single leaf single-action doors
- Single-action doors up to 1400 mm leaf width or 230 kg weight
- Interior and exterior doors with high access frequency

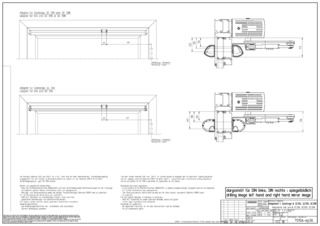

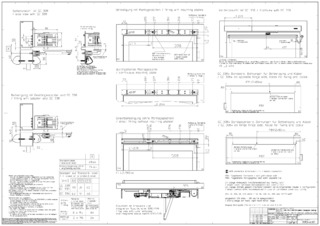

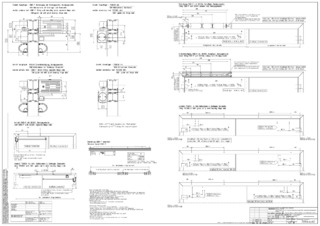

- Door leaf installation and transom installation

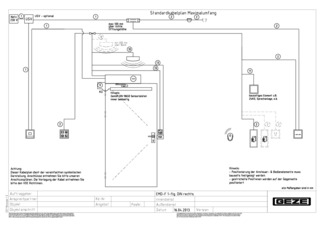

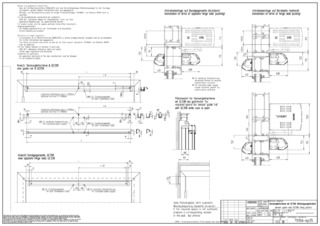

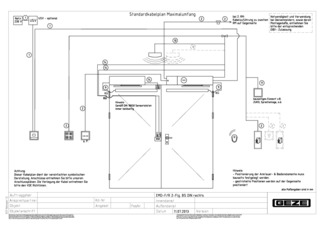

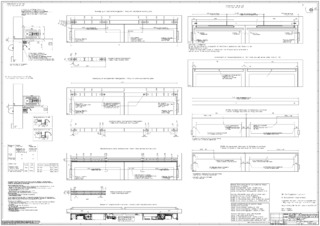

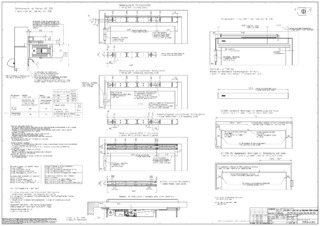

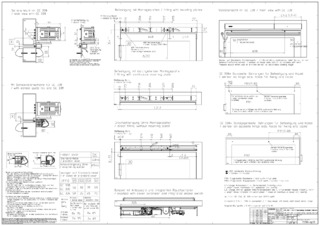

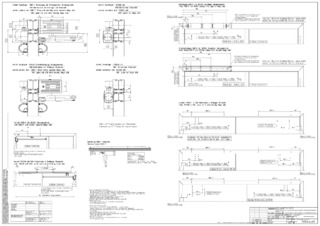

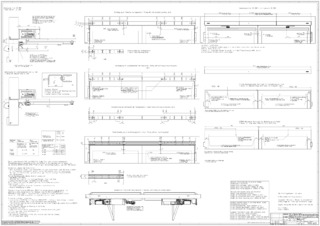

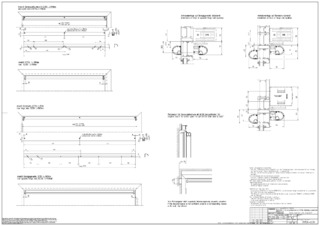

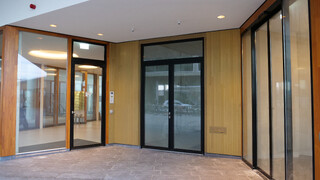

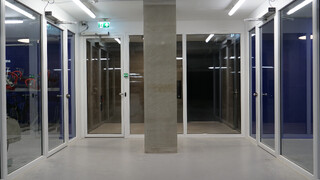

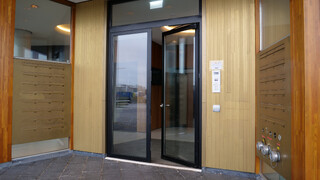

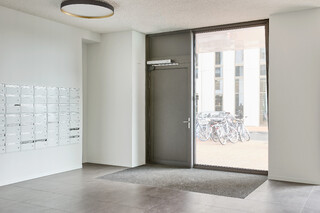

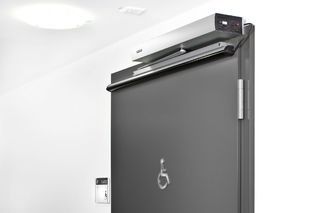

Installation situations in reference objects and videos

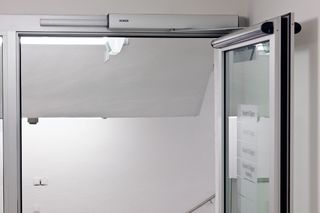

Discreet design for contemporary swing doors: the GEZE TS 5000 door closer.
The TS 500 door closer closes doors reliably and blends in well with the architecture. © Nicolas Thome / GEZE GmbH

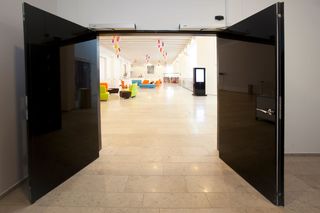

Swing door drive - Slimdrive EMD F-IS, Klinikum Düsseldorf
Electromechanical swing door system for double leaf fire and smoke protection doors with integrated mechanical closing sequence control © Lothar Wels / GEZE GmbH
Swing door drive - Slimdrive EMD F-IS, Tivoli congress centre Copenhagen
Electromechanical swing door system for double leaf fire and smoke protection doors with integrated mechanical closing sequence control © Morten Bak / GEZE GmbH
Slimdrive EMD-F + GC 334 + RSZ 6, Z flush-mounting
The combination of the solutions provide comfortable ease of access and also provides smoke and fire protection. © N. Grünwald / GEZE GmbH

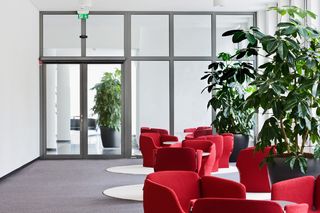

Swing door drive - Slimdrive EMD-F, City Library at the Mailänder Platz
An electromechanical swing door drive for single leaf fire and smoke protection doors © GEZE GmbH
Swing door drive - Slimdrive EMD-F, with emergency exit control TZ 320
An electromechanical swing door drive for single leaf fire and smoke protection doors combined with a emergency exit control © Jürgen Pollak / GEZE GmbH
Swing door drive - Slimdrive EMD-F, City Library at the Mailänder Platz
An electromechanical swing door drive for single leaf fire and smoke protection doors © GEZE GmbH
Slimdrive EMD-F + GC 334 + RSZ 6, Z flush-mounting
The combination of the solutions provide comfortable ease of access and also provides smoke and fire protection. © N. Grünwald / GEZE GmbH
Swing door system - Slimdrive EMD-F IS, St. Elisabeth
Electromechanical swing door system for double leaf fire and smoke protection doors with integrated mechanical closing sequence control © Erwin Kamphuis / GEZE GmbH
Swing door system - Slimdrive EMD F-IS, Klinikum Düsseldorf
Electromechanical swing door system for double leaf fire and smoke protection doors with integrated mechanical closing sequence control © Lothar Wels / GEZE GmbH

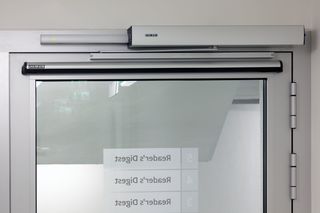

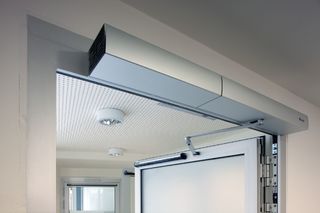

Swing door drive - Slimdrive EMD-F + GC 334 + RSZ 6, Z flush-mounting
Electromechanical swing door drive for single leaf fire and smoke protection doors © N. Grünwald / GEZE GmbH
Slimdrive EMD-F + GC 302 + GC 335 + RSZ 6, Deutsche Telekom
Slimdrive EMD-F - Electromechanical swing door drive for single leaf fire and smoke protection doors GC 302 - Radar movement detectors for activating automatic doors. GC 335 - High-security sensor strip for the protection of automatic swing doors. RSZ 6 - Smoke switch control unit for all GEZE hold-open devices. © Lothar Wels / GEZE GmbH

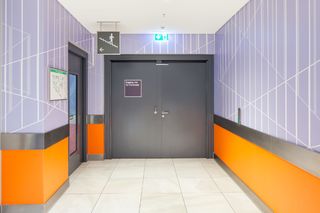

Swing door system - Slimdrive EMD F/R-IS, Milaneo
Slimdrive EMD F/R-IS Drive system and CB flex carry bars, Milaneo, Stuttgart © Jürgen Pollak / GEZE GmbH
Swing door drive - Slimdrive EMD-F, VGH Versicherungen (insurance company) Hanover
Electromechanical swing door system for double leaf fire and smoke protection doors with integrated mechanical closing sequence control and integrated smoke switch © Lothar Wels für GEZE GmbH
Swing door drive - Slimdrive EMD-F + GC 334 Sensor strip, Z flush-mounting
Slimdrive EMD-F Electromechanical swing door drive for single leaf fire and smoke protection doors. GC 334 Sensor strip for the protection of automatic swing doors. © N. Grünwald / GEZE GmbH

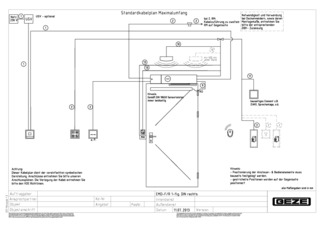

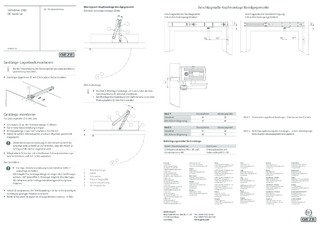

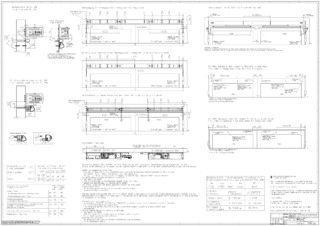

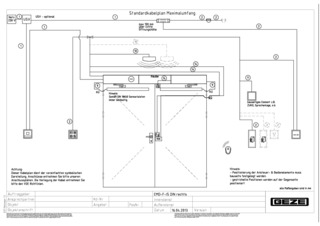

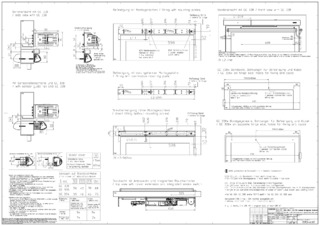

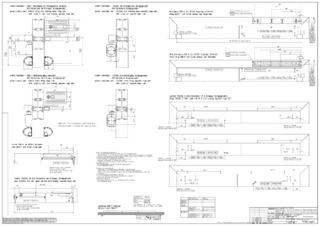

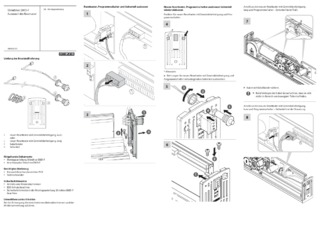

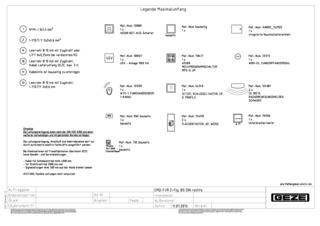

Product specifications
| Slimdrive EMD-F | |
| Height | 70 mm |
| Depth | 121 mm |
| Leaf weight (max.) | 230 kg |
| Hinge clearance (min.-max.) 2-leaf | 1500 mm - 2800 mm |
| Leaf width (min.-max.) | 750 mm - 1400 mm |
| Reveal depth (max.) | 400 mm |
| Door overlap (max.) | 30 mm |
| Drive type | Electromechanical |
| Opening angle (max.) | 130 ° |
| Spring pre-load | EN3 - EN6 |
| Z-variant (pulling) | No |
| Z-variant (pushing) | No |
| DIN left | Yes |
| DIN right | Yes |
| Installation in the door leaf | No |
| Installation in the door frame | No |
| Transom installation opposite hinge side with link arm | Yes |
| Transom installation opposite hinge side with roller guide rail | Yes |
| Transom installation opposite hinge side with guide rail | No |
| Transom installation hinge side with guide rail | No |
| Transom installation hinge side with roller guide rail | Yes |
| Transom installation opposite hinge side with guide rail on all-glass doors | No |
| Transom installation hinge side with guide rail on all-glass doors | No |
| Door leaf installation opposite hinge side with guide rail | No |
| Door leaf installation opposite hinge side with roller guide rail | No |
| Door leaf installation hinge side with guide rail | No |
| Door leaf installation hinge side with roller guide rail | Yes |
| Door leaf installation hinge side with link arm | No |
| Mechanical latching action | Yes |
| Electrical latching action | Yes |
| Electrical closing sequence control | Yes |
| Mechanical closing sequence control | No |
| Disconnection from mains | Cable plug connection |
| Activation delay (max.) | 20 s |
| Operating voltage | 230 V |
| Power rating | 230 W |
| Power supply for external consumers (24 V DC) | 1000 mA |
| Operating temperature | -15 °C - 50 °C |
| IP rating | IP20 |
| Mode of operation | Off, Automatic, Permanently open, Shop closing, Night |
| Type of function | Fully automatic |
| Automatic function | Yes |
| Low-energy function | Yes |
| Smart swing | No |
| Servo function | Yes |
| Key function | Yes |
| Inverse function (opening by spring force) | No |
| Vestibule function | Yes |
| Obstacle detection | Yes |
| Automatic reversing | Yes |
| Push & Go | adjustable |
| Operation | Programme switch DPS, Programme switch integrated in the drive |
| Parameter setting | GEZEconnects (PC + Bluetooth), ST 220 service terminal |
| Approvals | DIN 18650, DIN 18263-4, EN 16005 |
| Suitability for fire protection doors | Yes |
| Integrated smoke switch | No |
| Use on fire and smoke protection doors (F-variant) | No |
